PCB Manufacturing Equipment Consumables & Spares

We supply a range of consumables for the Seetrax PCB track welder (CirKit Weld 450), V-cut scoring machines (Quick Score and Multi-score), V-Cut separating/depaneling machines (CirCut manual and powered) and PCB Edge finishing machines (Edge, Bevel and Tab Cut).

We also carry some spares for JWA and ORC machines and the Data Score DS 700 Scoring machine.

All our track welding repair ribbons are lead free.

Track Welding Repair Ribbon

Track Welding Repair Ribbon

Track Welding Repair Ribbon

Our Tin-Lead Plated Copper ribbon ensures a perfect weld, with excellent conductivity, every time ... at a very low cost. Use in conjunction with Cirkit Weld 450 Track Weld Repair Station or any similar track welder.


1oz Track welding repair ribbon (0.025mm thick)  Silver Plated Copper Ribbon for Inner layer work

0.076mm x 0.025mm, 20 Metre spool (0.003")(Part ref CU3S)

0.10mm x 0.025mm, 20 Metre spool (0.004")(Part ref CU4S)

0.13mm x 0.025mm, 20 Metre spool (0.005")(Part ref CU5S)

0.15mm x 0.025mm, 20 Metre spool (0.006")(Part ref CU6S)


1oz Track welding repair ribbon (0.038mm thick)

Plated Copper Ribbon for Inner layer work

0.10mm x 0.038mm, 20 Metre spool (0.004")(Part ref CU4)

0.13mm x 0.038mm, 20 Metre spool (0.005")(Part ref CU5)

0.15mm x 0.038mm, 20 Metre spool (0.006")(Part ref CU6)

0.20mm x 0.038mm, 20 Metre spool (0.008")(Part ref CU8)

0.25mm x 0.038mm, 20 Metre spool (0.010")(Part ref CU10)

0.30mm x 0.038mm, 20 Metre spool (0.012")(Part ref CU12)

0.38mm x 0.038mm, 20 Metre spool (0.015")(Part ref CU15)


2oz Track welding repair ribbon (0.075mm thick)

Plated Copper Ribbon for Outer layer work

0.075mm x 0.075mm, 20 Metre spool (0.003")(Part ref CU30)

0.10mm x 0.075mm, 20 Metre spool (0.004")(Part ref CU40)

0.13mm x 0.075mm, 20 Metre spool (0.005")(Part ref CU50)

0.15mm x 0.075mm, 20 Metre spool (0.006")(Part ref CU60)

0.20mm x 0.075mm, 20 Metre spool (0.008")(Part ref CU80)

0.25mm x 0.075mm, 20 Metre spool (0.010")(Part ref CU100)

0.30mm x 0.075mm, 20 Metre spool (0.012")(Part ref CU120)

0.38mm x 0.075mm, 20 Metre spool (0.015")(Part ref CU150)

0.50mm x 0.075mm, 20 Metre spool (0.020")(Part ref CU200)

1.0mm x 1.0mm, 20 Metre spool (0.040")(Part ref CU400)


Each Ribbon Costs £95 + VAT

Email sales@seetrax.com to order

Electrodes

Track Welding Repair Ribbon

Track Welding Repair Ribbon

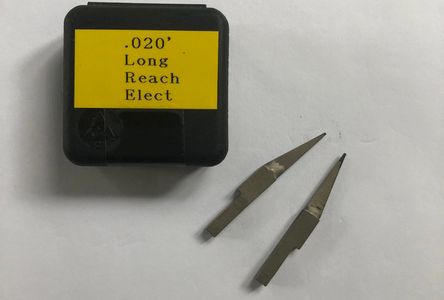

Electrodes for Cir-Kit Weld 450 track welder


An extensive range of Electrodes manufactured by Seetrax and available to suit not only the JWA/Seetrax CAE Cirkit Weld 450 but most other popular track welders


1 pair, 0.25mm (0.010")(Part ref EL10)

1 pair, 0.38mm (0.015")(Part ref EL15)

1 pair, 0.50mm (0.020")(Part ref EL20)

1 pair, 0.75mm (0.030")(Part ref EL30)


Electrode Set  Costs £140 + VAT

Email sales@seetrax.com to order

Separator Blades

Separator Blades

Separator Blades

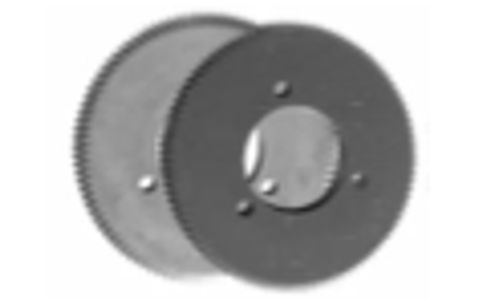

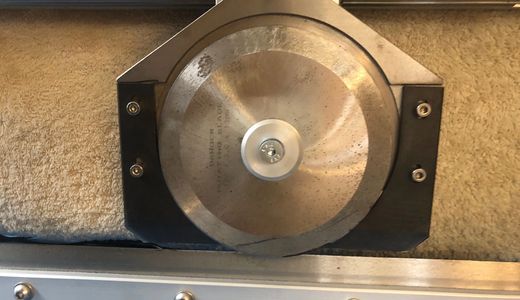

CIR-CUT SEPARATOR BLADES
(Prices correct 1st October 2021)


OEM Circuit blades are precisely ground and hardened to achieve an effortless, stress-free

& conditioned breakout.


Top blade for M35/P35 (ref SP0112) £89.00

Top Blade for M70 (ref SP0148.00)£195.00

Bottom Blade for M35/ M70 (ref 0113) £450.00


M35/P35 Single Front Upper Guide (ref SP0117) £123.00

M35/P35 Single Back Upper Guide (ref SP0118) £123.00


 P35 Single Front lower guide (ref SP0109) £143.00

P35 Single Back lower guide (ref SP0110) £143.00

M70 Single Front upper Guide (ref SP0111) £243.00

M70 Single Back Upper Guide (ref SP0148.00) £243.00



Email sales@seetrax.com for Price


PCB Scoring

Separator Blades

Separator Blades

MULTI SCORE & QUICKSCORE CARBIDE CUTTERS


The very highest quality carbide cutters available, ensuring precision scoring and long service at low cost


1 Item - 30 Degree (Part Ref MQC30)

1 Item - 45 Degree (Part Ref MQC45)

1 Item - 60 Degree (Part Ref MQC60)



MULTISCORE & QUICKSCORE MAINTENANCE ACCESSORIES


OEM Serviceable Parts & Kits which will maintain the quality of production and keep your machine in top condition.


Single Cutter Holder (Part Ref MQCH)

1 Set - in Locators (Part Ref MQCP)

1 Kit - Setting Tools (Part Ref MCQT)

1 Item - Digital Score Gauge (Part Ref MQDG)

1 Item - Manual Score Gauge (Part Ref MQMG)


Email sales@seetrax.com for Price
