CirCut PCB VCut Depanelers / Separators engineering services electrical engineering

These machines are no longer in production but we still offer a full support service and catalogue of spare parts


The CirCut depaneler has been precision designed and manufactured in England to separate/depanel v-cut scored, component-loaded PCB's cleanly and effortlessly.

As surface mounted components continue to get smaller and more delicate, it is increasingly important to reduce distortion in the depaneling "breakout" process. This reduces scrap rates and "in the field" failures, which prove costly in terms of down-time, replacement and customer confidence.


Reduced Component Failure

Since there is no flex or distortion in the depaneling process, a significant reduction in post breakout printed circuit board (PCB) and/or component failure can be expected, saving time and money.


CirCut Features:

  • one step PCB separation & finishing
  • depanels PCB boards with components upto 70mm tall
  • 1mm clearance required for separation
  • small separator channel required*
  • PCB panels from 0.5 to 3mm thick depaneled effortlessly
  • separates PCB panels upto 700mm
  • compensates for inconsistent web-thickness
  • handles intermittant scoring
  • PCB edge conditioning to reduce fibres
  • hardened and ground blades & guides
  • can accept populated PCB boards with component overhang^
  • quick & simple setup
  • manually operated or powered versions available
  • designed, manufactured and serviced from the UK

* components can be adjacent to the score-line on one side of the blade and small components 1mm away on the other side, increasing to a maximum requirement of 3mm for tall components.


^manually powered circut can be designed to accept component overhang


Flexibility in Scoring Depth

The CirCut depaneler allows more flexibility in scoring depth - PCB's with thicker webs, which previously resulted in jagged breakout with loose fibres, are now separated/depaneled with a conditioned finished board edge.


One Step Separating and Finishing

The Circut depaneler utilizes precision, hardened and ground separator blades with score-location guides which effortlessly slice the remaining web, leaving PCB board edges clean and smooth.



Full Details and Depanneller Brochure (pdf)

Download

M35 CirCut Video Guide engineering services

P35 CirCut Video Guide electrical engineering

CirCut Alloy Video Guide

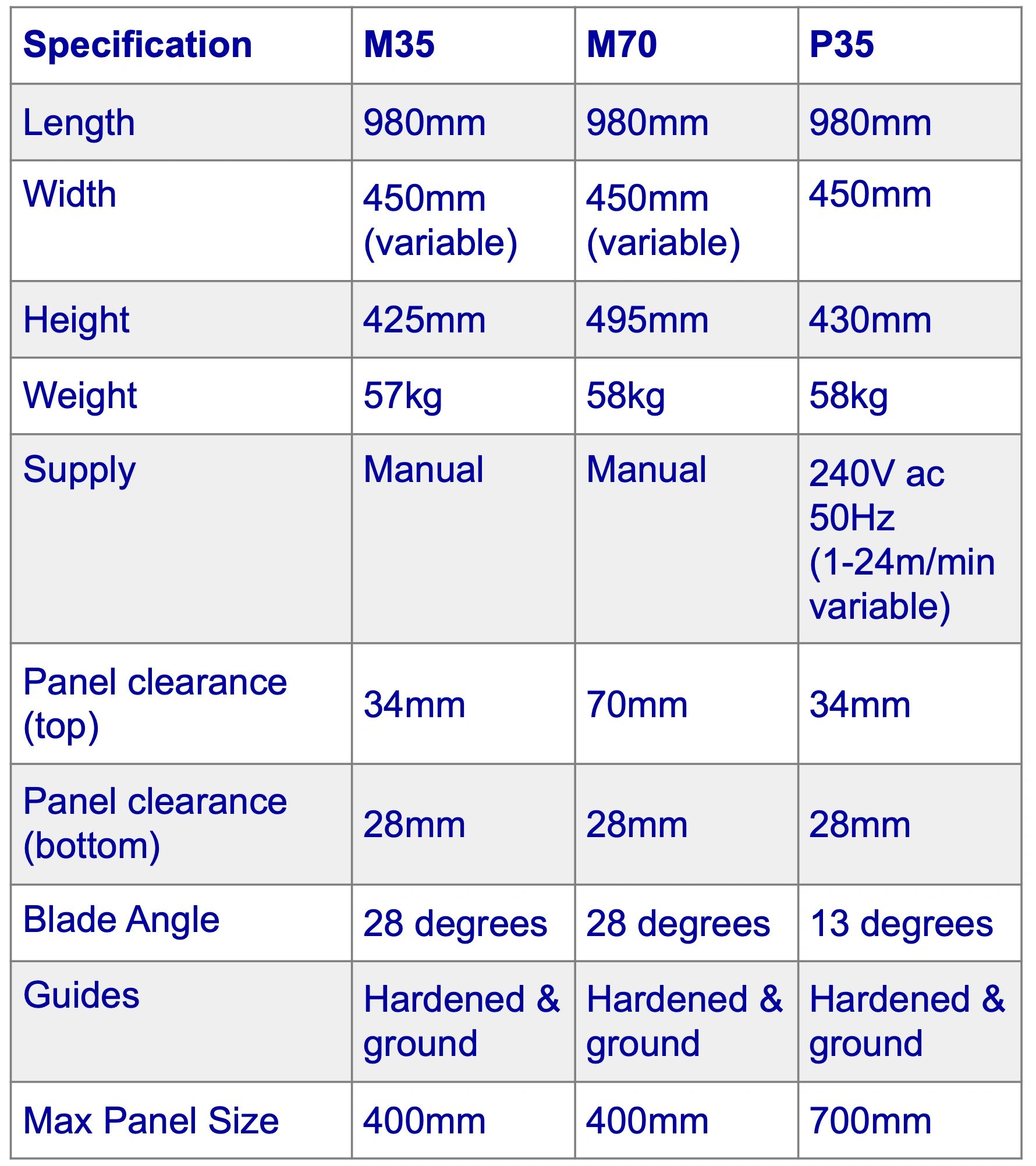

Specification
